• 65.09100-7080A 65091007080A Turbocharger DOOSAN Excavator Spare Parts For DX225LCA DB58

• Specifiion

Name	Turbocharger
Parts No	65.09100-7080A
Machine Model	DX140W DX160W DX200A DX220A DX220AF DX225LCA
egory	Turbo Charger and Oil Pipe
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

EXCAVATOR DX140W DX160W DX200A DX220A DX220AF DX225LCA SOLAR 175LC-V SOLAR 225LC-V SOLAR 230LC-V Doosan

• More other turbocharger parts fit for DOOSAN machine

2549-1135D8 SWITCH;PRESSURE

Doosan

549-00084 SWITCH;LOW PRESS

Doosan

549-00086 SWITCH;SLIDE

Doosan

549-00093 SWITCH;TOGGLE

Doosan

549-00095 SWITCH;PRESSURE

Doosan

K9001001 SWITCH ASS'Y

Doosan

4549-1139 SWITCH;DETECTOR

Doosan

4549-1148 SWITCH;PROXIMITY

Doosan

2549-1152B SWITCH;STARTER

Doosan

2549-1152A SWITCH;STARTER

Doosan

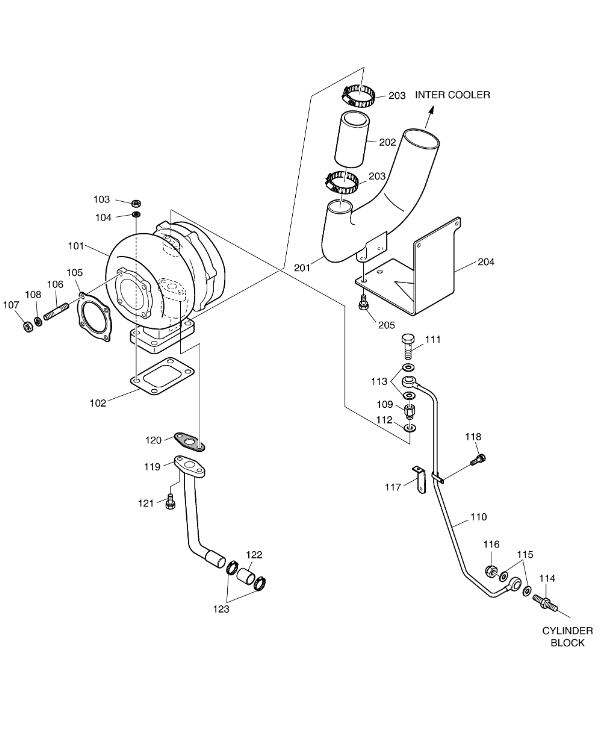

• alog parts list

Pos.	Part No	Qty	Parts name	Comments
101	65.09100-7080A	[1]	TURBO CHARGER ASS'Y
102	65.09901-0018A	[1]	GASKET
103	06.11024-9202	[4]	NUT M10X1.25
104	06.16731-2108	[4]	WASHER;SPRING
105	65.09901-0020	[1]	GASKET;TURBO CHARGER
106	65.90201-0096	[4]	BOLT;STUD M8X30
107	06.11063-8214	[4]	. NUT
108	06.16731-2107	[4]	WASHER
109	65.98130-0200A	[1]	ADAPTER
110	65.05701-5342	[1]	OIL PIPE ASS`Y
111	06.78144-2403	[1]	HOLLOW SCREW M12X1.5
112	06.56190-0709	[1]	SEAL;RING
113	06.56190-0704	[2]	. RING;SEAL
114	65.98155-0011	[1]	UNION;HOLLOW
115	06.56180-0714	[2]	RING;SEAL
116	06.12172-9314	[1]	NUT;CAP
117	65.97480-0135	[1]	HOLDER
118	06.01913-3110	[1]	BOLT ASS`Y M8X12
119	65.05701-5343	[1]	OIL PIPE ASS'Y
120	65.96601-0067	[1]	GASKET;T/C OIL RETURN
121	06.01913-3115	[2]	BOLT ASS`Y M8X25
122	65.96301-0280A	[1]	HOSE;RUBBER
123	06.67020-0106	[2]	CLAMP;HOSE
201	65.09411-5054	[1]	PIPE;INLET
202	65.96301-0279	[1]	HOSE;RUBBER
203	06.67020-0109	[2]	CLAMP;HOSE
204	65.09440-0016	[1]	BRACKET
205	06.01923-3215	[2]	BOLT ASS`Y M10X25

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
